CI Forest Products - Installation Guide

Installation of Northern White Cedar Products Add Life and Value of Your Home.

Log Profile Installation Instructions



We can guide you to the proper installation of our Quality Products for those clients who choose do-it-yourself projects assuring an end result that will continue for years of beauty and minimal maintenance that will continue to keep your home value.


Materials needed for 1/2 and 1/4 Log Profiles


For 1/2 Log Profiles use a 3" galvanized nails or screws

For 1/4 Log Profiles, we recommend using 8 penny framing nails


INSTALLATION Starting Point:




Start With Window and Door Trims

• Toe Nail at an angle on the outside reveals of each trim piece. (see photo1)

• The Top and Bottom Trim will fasten to the Top and Bottom of the Side Trim to secure Frame




Vertical Corner Installation

• Vertical Corners are fastened at an angle on the outside reveal of each Trim piece like window and door Trim.

• Toe Nail on the outside reveals of each corner piece.


Butt & Pass Corners Installation

• Butt & Pass Corners will come in random lengths ranging from 3' - 5'

• Alternate lengths to avoid a straight line.

• Start from the bottom and work your way up with the grove pointing down.

• On the first row on the bottom and top Toe Nail at an angle to fasten.

• After First Row is complete Toe Nail at top of each Row. (see photo 2)

• When you get to top row you may face nail with a galvanized nail or screw carefully so you have minimal fastener exposure for a clean finish.




Cedar Log Profiles and Paneling Installation

• Start from the bottom and work up with grove pointing down.

• On First Row Toe Nail from the Bottom of the log, and then also Toe Nail on top between Tongue and Profile Line. (see photo 3)

• Each Row after will only be Toe Nailed at the Tongue Groove.

• Use Shorter Pieces at Ends and Between Windows and Doors.

• With End Matching your WASTE IS ALMOST ZERO!




Experience has shown that our customers are amazed at how easy the installation process is. We believe you will be pleased with how your project will come together and with the look of a log home without the cost of full logs.


For clarification, comments or any questions don't hesitate to contact us. We would be glad to help you 517-279-1757.

CI Forest Products Installing Trim Instructions

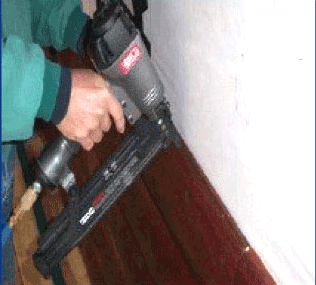

Photo 1 shows Installing Trim

CI Forest Products Installing Butt & Pass Log Corners

Photo 2 shows Installing B&P Corners

CI Forest Products Installing Log Profile Instructions

Photo 3 shows Installing Log Profile
